Overview

This page describes the first 3steps of the application configuration flow.

These steps are used when:

• Creating a new application in advanced mode
• Editing an existing application.

This part of the flow includes:

• Name & Description: Define the application’s basic details and categorization
• Provider & Protocol: Select where the resource is hosted and how users connect to it
• Application Parameter: Configure how the application connects to the resource and how it is exposed to users

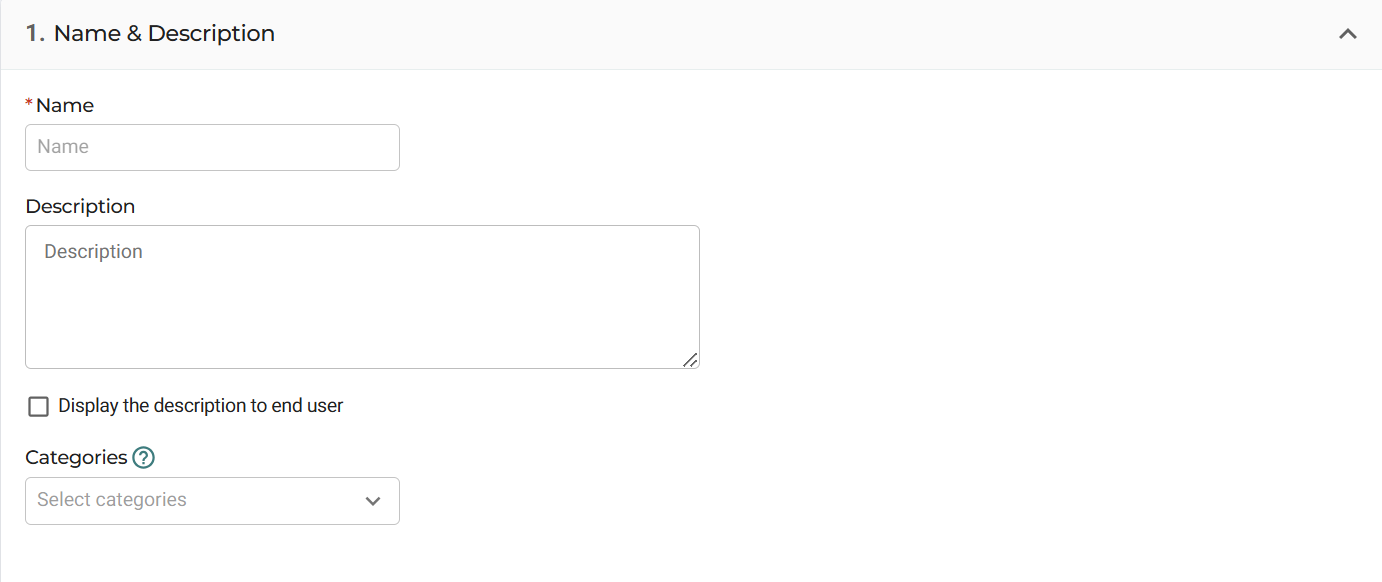

Step 1: Name & Description

Define the basic details of the application.

• Name: The display name of the application
• Description: Optional descriptive text
• Display the description to end user: Controls whether the description appears in the Application Portal
• Categories: Assign the application to categories

Categories can be used to organize applications and may affect rule inheritance.

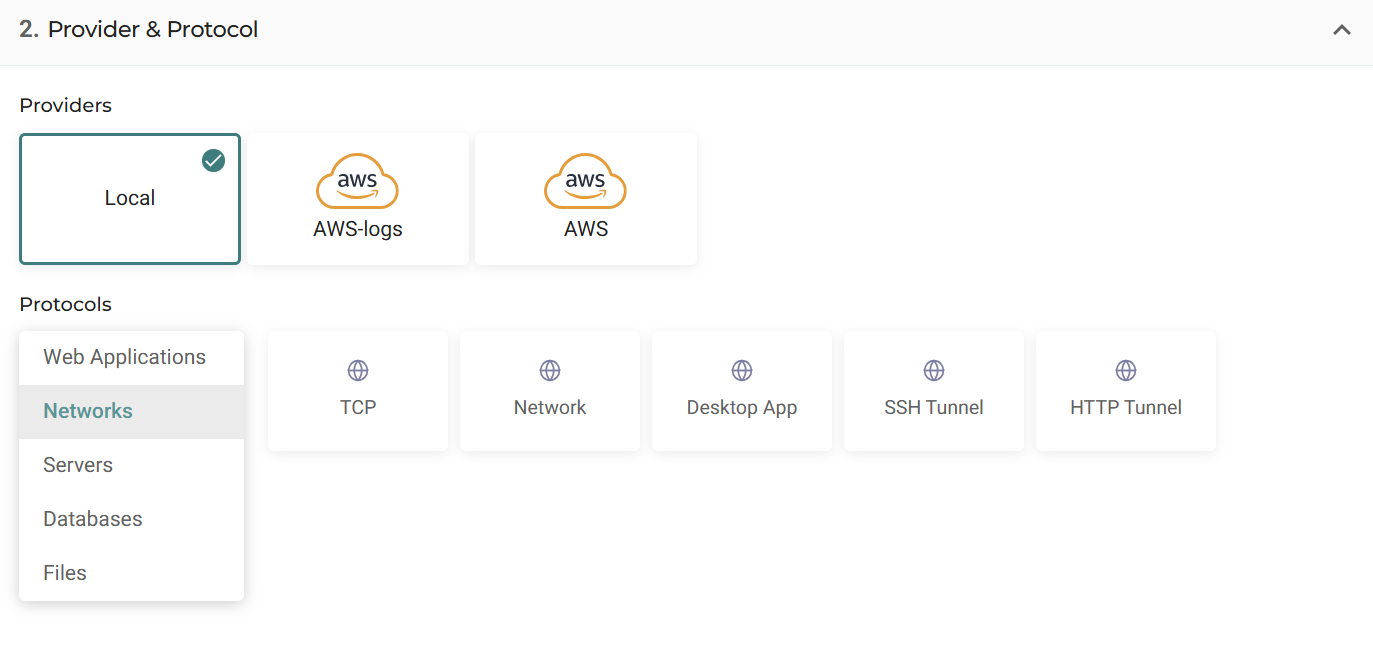

Step 2: Provider & Protocol

Select where the resource is hosted and how users connect to it.

• Provider: Select the hosting environment, such as Local, AWS-logs, or AWS
• Protocol category: Select the resource type
• Connection type: Select the protocol within that category

Depending on the selected connection type, additional fields may appear, such as port settings or protocol-specific options.

See further details about specific Protocols here .

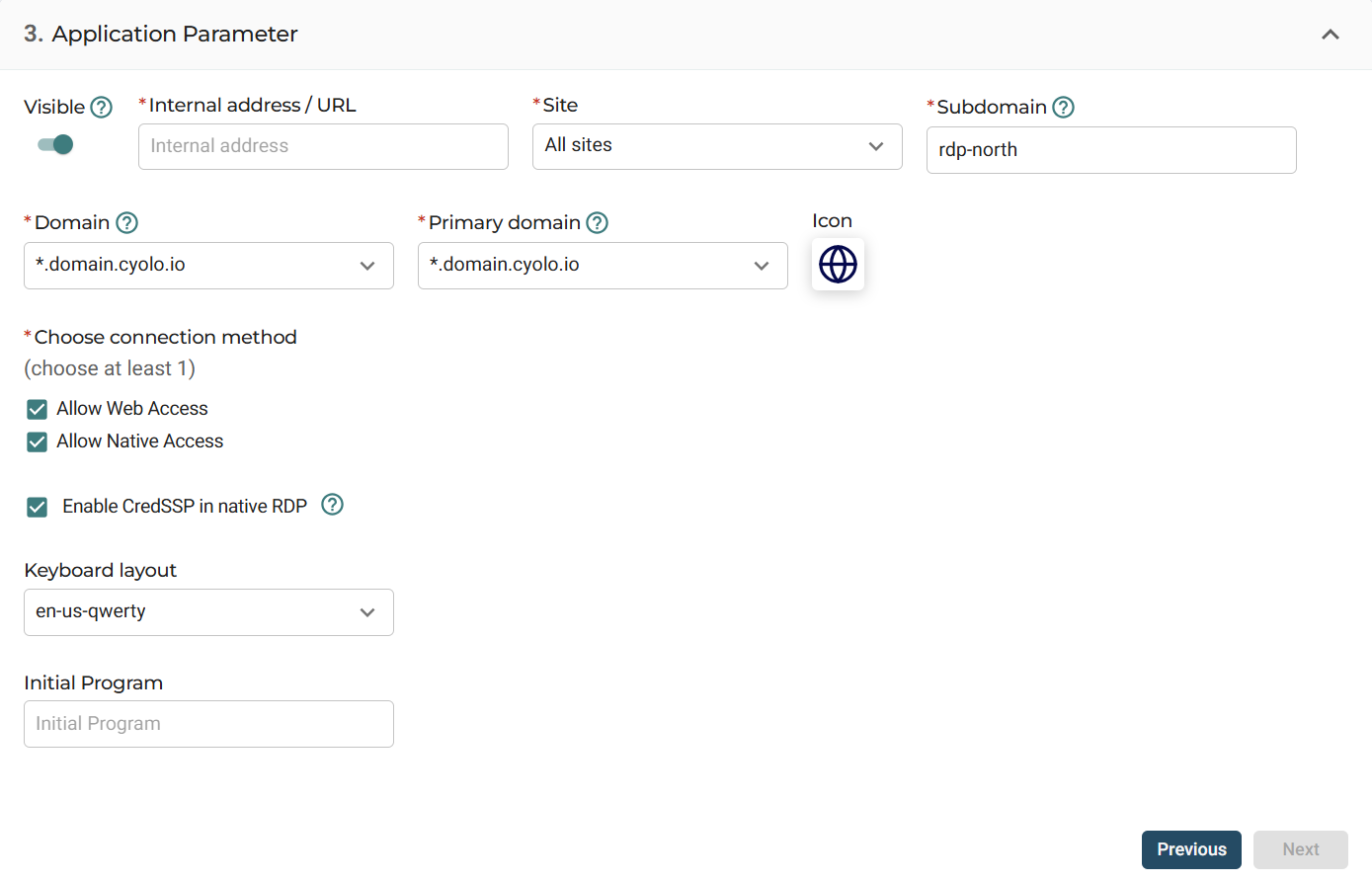

Step 3: Application Parameters

Configure how the application connects to the resource and how it is exposed to users.

General Settings

• Visible: Controls whether the application appears in the Application Portal
• Internal address / URL: The internal IP address, hostname, or URL of the resource. The address must be reachable from the IDAC
• Site: Determines which IDACs publish the application. Selecting All sites makes the application available across all current and future IDACs
• Subdomain: The application-specific prefix used to construct the external URL. See note below for setting this field for- SSH Tunnel Configuration.
• Domain: The domain used to publish the application. Wildcard domains can be used for multiple applications
• Primary domain: The main domain used for the application
• Icon: The icon displayed in the Application Portal
• Home Directory: The default path for supported applications

HTTP/S Translate Settings

Configure how requests and responses are rewritten between external and internal addresses.

• Translate request body
• Translate request header
• Translate response body
• Translate response header
• Translate request query parameters

Custom Headers

Add custom HTTP headers to requests and responses.

• HTTP Custom Request Headers: Headers added to requests sent to the application
• HTTP Custom Response Headers: Headers added to responses returned to the user

Additional Settings

• Keep Content Security Policy headers: Keeps the original Content-Security-Policy header from the upstream server
• Add X-Forwarded headers: Adds X-Forwarded-* headers to the request
• Send client certificate: Sends a client certificate to the server during mutual TLS authentication

Note on Internal Address/URL

For SSH Tunnel connections, you can configure multiple destination IP addresses and ports in the Internal address / URL field.

• Format: localPort:destinationIP:destinationPort
• Separate multiple entries with commas or semicolons
• When multiple mappings are defined, the generated SSH command includes all configured addresses and ports

Example

8080:192.168.0.2:80; 8443:192.168.0.2:443; 3306:192.168.0.10:3306

Maps:

• Local port 8080 → 192.168.0.2:80
• Local port 8443 → 192.168.0.2:443
• Local port 3306 → 192.168.0.10:3306

Supported formats

• 192.168.1.1
  Uses the port defined in the Port field for both local and destination

• 192.168.1.1:3389
  Uses port 3389 for both local and destination. The Port field is ignored

• 4567:192.168.1.1:3389
  Local port 4567 maps to destination port 3389. The Port field is ignored

• 4567:192.168.1.1:3389, 4545:192.168.2.2:3330
  Multiple mappings. The Port field is ignored
